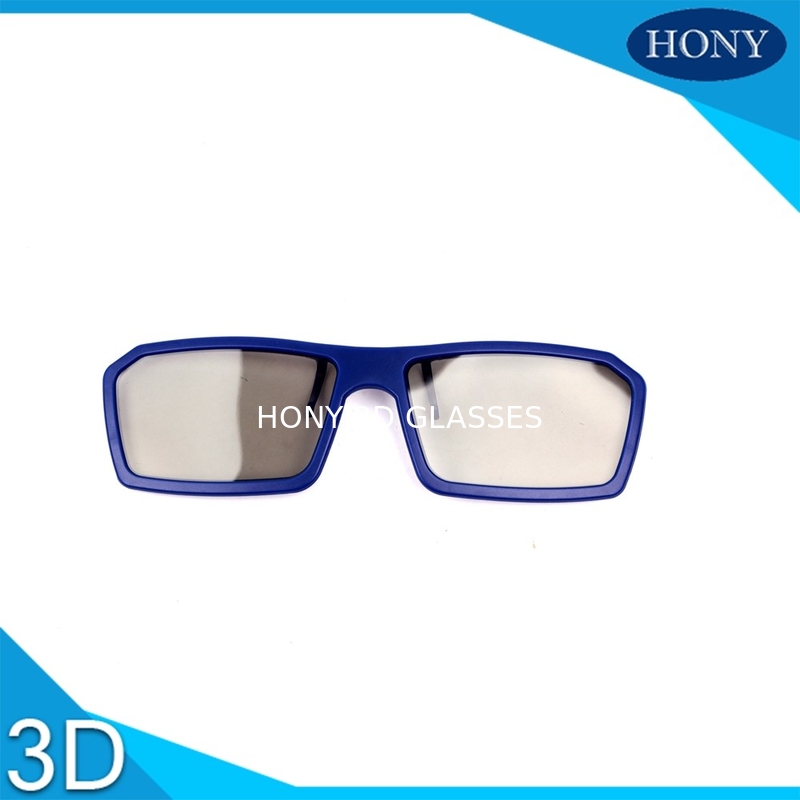

Passive Clip On Polarized 3D Glasses One Time Fold Arms For IMAX
Product Details:
| Place of Origin: | SHENZHEN |
| Brand Name: | HONY3D |
| Certification: | CE ROHS |
| Model Number: | PL0006LP |
Payment & Shipping Terms:
| Minimum Order Quantity: | 1000pcs |
|---|---|
| Packaging Details: | 1pc/PE bag 200pcs/box 20 boxes/ctn ctn size: 76*41*60cm g.w.:27.86kgs |
| Delivery Time: | 5days |
|
Detail Information |
|||
| Model: | PL0006LP Clip One | Lens Type: | Linear Polarized |
|---|---|---|---|
| Lens Thickness: | 0.23mm | Usage Area: | For 3D Cinema Use, 3D TV Use |
| Feature1: | Big Size Frame | Feature 2: | Big Lens, Wide Visual Area |
| Highlight: | linear polarized glasses,3d eye goggles |
||
Product Description
Passive Clip On Linear Polarized Glasses Plastsic IMAX 3D Glasses One Time Use
| Product Specification | |
| Name | Big Size Imax Polarized 3d Glasses |
| Model | PL0004LP |
| Lens Type | Linear Polarized |
| Lens Thickness | 0.38mm |
| Frame Material | ABS Plastic |
| Frame Color | Black |
| Usage Area | For 3D Imax Cinema Use |
| Product Certificate | ROHS, Reach, CE |
| Feature1 | Big Size Frame |
| Feature 2 | Big Lens, Wide Visual Area |
| Feature 3 | Most Popular Model For 4D, 5D Cinema |
| Feature 4 | Fold Arms |
| Feature 6 | Can Print Logo On Frame |
| Product Size | 171*64*175mm |
| Packing | 1pc/PE bag,200pcs/box,20 boxes/ctn,ctn size:76*41*60cm,g.w.:27.86kgs |
| Print Logo Supply | Yes |
| No Logo MOQ | 100pcs |
| Print Logo MOQ | 500pcs |
| Sample Lead Time | 7 Days |
| Production Lead Time | 12 Days |
| Shipping Way | By Airpost, By Express, By Sea |
| Payment | T/T, L/C |
| Product spec(linear polarized) | |||||||
| Structure | Spec. | ||||||
| Lens | 1 | Protective film(PET/PE) |  |
||||
| 2 | HC TAC | ||||||
| 3 | PVA | ||||||
| 4 | TAC | ||||||
| 5 | protective film(PE) | ||||||
| Item | Unit | Spec. | Remarks | ||||
| Size | AB,CD(L) | mm | depends on customer's need | ||||
| BC,DA(R) | mm | depends on customer's need | |||||
| Thickness | Effective thickness | μm | 490±10% | ||||
| protective film | μm | 60±10% | |||||
| Peel strength | protective film | gf/25mm | ＜50g | ||||
| Transmittance | singel transmittance | % | 42.0±2.0 | ||||
| cross transmittance | % | ≤0.1 | |||||
| 380nm transmittance | % | ≤1.0 | |||||
| weather resistance | temperature60℃ | humidity 90% | 500h | 3 years | no change of physical optical characteristics | ||
| Angle | Cut axis angleψ | ° | 45±1.0 | ||||
| θp | ° | ±45±2.0 | |||||
| Hue | L | NBS | 65.0±2.0 | ||||
| a | NBS | -2.0±2.0 | |||||
| b | NBS | 3.0±2.0 | |||||
| Polarizing Efficiency | % | ≥99.90 | |||||
PL0002 Kids and PL0001 Adult:
Lowest model: PL0017 Adult and PL0022 kids
PL0011 Adult and PL0010 Kids:
Clip on Style:
Anti Scratch style:
Linear Polarized Testing:
3D Glasses In Cinema:
CinemaCon, CineEurope,CineAsia etc. Trade Show:
3D glasses containers:
